TRACKbox TB2 Tracking Device

The TB2 is a 3G Cellular Vehicle Tracking device, specifically designed for ArmadaGPS.

The TB2 is only available in Australia and New Zealand.

A standard (3 wire) installation is required, (power/earth/ignition sense) to monitor ignition on/off, engine hours, odometer and location.

High resolution driver behavior in TruePath data.

Garmin integration for two way messaging.

Reasons to Poll

  • Ignition on/off

  • PTO/Aux on/off

  • Alarm activation

  • Panic/SOS activation

  • Input voltage low

  • Internal battery low

  • TruePath Tracking

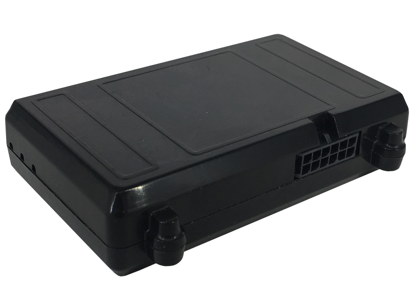

SA43-50 SQ.png

security

  • Data in transit is encrypted and digitally signed.

Specifications

Network - 3g (with 2g fallback)
Size -
Weight -
Waterproof - No
On Board Memory, Point Logging -
Backup Battery - 2300mAh
Operating Voltage - 6 ~ 40V DC
Installation - Standard 3 wire Install
Low Power Mode - Yes
GPS Antenna - Internal
Cell Antenna - Internal



I/O configuration

  1. -

  2. -

  3. Ignition sense

  4. Alarm sense

  5. Ground

  6. Power (6-42VDC)

  7. -

  8. -

  9. RS232TxD

  10. RS232RxD

  11. Aux/PTO sense or Panic/SOS

  12. Disable (via SMS)
